Product Details
Place of Origin: GuangZhou, China
Brand Name: RUI-HE
Certification: RoHS, FDA, MSDS, SGS, REACH, PAHS, ISO9001:2016, etc.
Model Number: RH20230222-1
Payment & Shipping Terms
Minimum Order Quantity: 20KG/200KG
Price: Negotiation
Packaging Details: 20 kg pails or 200 kg drums
Delivery Time: 5-15 days
Payment Terms: Western Union, L/C, T/T, Paypal
Supply Ability: 1000 tons per day
Application: |
Power Insulation Products Such As Cold Shrink Finger Sleeve, Termination，joint, Ect. |
Apperance: |
Good Rebound Property After Expanding |
Hardness: |
40 Shore A |
Tracking Resistance: |
1A3.5 |
Package: |
5 Or 20 Or 200/drum |
Incoterms: |
EXW, FOB, CIF |
Company Award: |
National High-tech Enterprise |
Material: |
100% Silicone Material |
Sample: |
Be Free |
Output: |
30000 Tons Per Year |
Application: |
Power Insulation Products Such As Cold Shrink Finger Sleeve, Termination，joint, Ect. |
Apperance: |
Good Rebound Property After Expanding |
Hardness: |
40 Shore A |
Tracking Resistance: |
1A3.5 |
Package: |
5 Or 20 Or 200/drum |
Incoterms: |
EXW, FOB, CIF |
Company Award: |
National High-tech Enterprise |
Material: |
100% Silicone Material |
Sample: |
Be Free |
Output: |
30000 Tons Per Year |

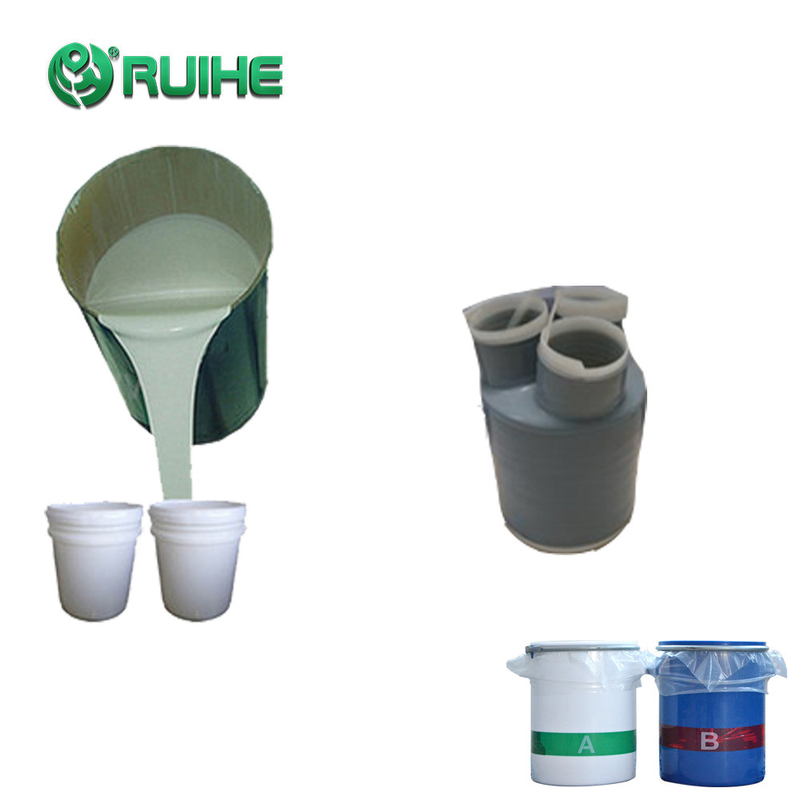

Excellent Weather Resistance Property Liquid Silicone Cold Shrink Finger Sleeve
Description of cold shink silicone rubber
A Liquid Silicone Rubber material is a two-part platinum-cured elastomer that can be injected into a mold cavity to manufacture a part. LSR is very versatile in the elastomer industry and is seen across a whole spectrum of parts from consumer products to medical devices and everything in between.
Manufactured from silicone rubber. Offering good mechanical, insulation and sealing protection. Accommodating a wide range of cable sizes. For indoor or outdoor applications. Simple and fast installation. Color:grey, black.
Features
Packaging & Storage
| Packaging Details | This kind of rubber is packed in 20kg / plastic barrels or 200KG/iron drum with an inside plastic bag. | |
| Port | HUANGPU GUANGZHOU, | |
| Lead Time | 1 – 1000 (Kilograms) 1001 – 10000 (Kilograms) |
7 days 15 days |
Store in a cool, dry place out of direct sunlight,
use it within 12 months from the day of manufacture.
Typical Properties
|
Item |
Unit |
Test value |
|
Appearance |
/ |
Grey |
|
Hardness |
Shore A |
42 |
|
Tensile strength |
Mpa |
10 |
|
Elongation at break(%) |
% |
＞820 |
|
Tear strength |
kN/m |
＞35 |
|
Volume resistivity |
Ω·cm |
1015 |
|
Dielectric strength |
kV/mm |
＞23 |
| Tensile Set | (300% 90℃ 168h) | ＜5 |
| Dielectric constant (50HZ) | / | 2.8-3.5 |
These figures are for reference only, please contact us for details.
| Processing Technic | |
| Mixing Ratio | 1:1 weight mixing. |
| Test Condition | Mold temperature 120℃, cured time 5 minutes. |
| Process | Ready-to-use mixtures, A:B in the ratio of 1:1, are fed directly to the injection moulding machine from the original containers by means of a metering and mixing unit. The temperature of heated mould ranges between 100 - 130°C. High curing speed and easy demoulding guarantee the production of large numbers of articles in short cycle times. |
Mixing ratio of components A : B = 1 : 1.
Vulcanization: 175 °C / 5 min
Company Profile
As an innovative silicone company, we always pay attention to the balanced development of economic, ecological and social goals. We use the advanced and scientific management concept to establish the "Ruihe" brand and buid a Chinese silicone intergrated solid silicone rubber and liquid silicone rubber, First-class enterprise.
RH5150-30ST A/B can be used to produce silicone custom flowerpot mold, ect.
Certificate
FAQ
We are dedicated to helping our customers make business easy. Have a professional team that will make production, quality control, shipping and many more which you no longer need to worry. All you have to do is sitting down and relax while we get the job done for you.
Yes of course. You can always start with a sample first.
If you need to know the prices of our silicone rubbers, please contact us. We do not provide prices in website because prices fluctuate for many reasons.
Video
