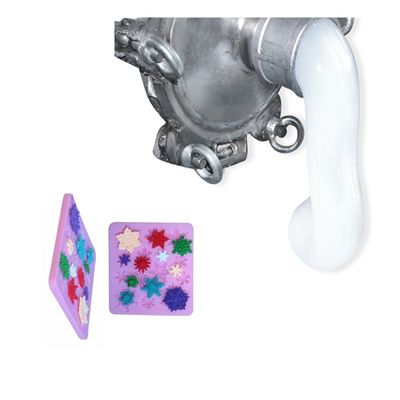

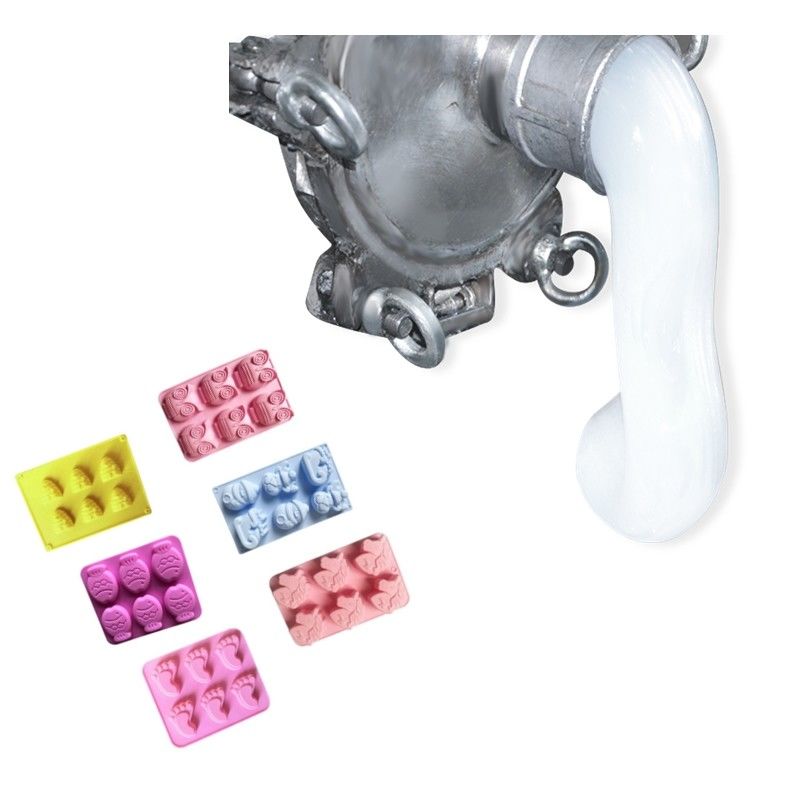

40 Shore A Hardness LSR Liquid Silicone Rubber For Mold Making With High Transparent Food Grade

Product Details:
Place of Origin: GuangZhou, China
Brand Name: RUIHE
Certification: FDA,MSDS,LFGB,RoHs,ISO9001-2015
Model Number: RH20200504-1
Payment & Shipping Terms:
Minimum Order Quantity: 20KGS
Price: USD 8/KG
Packaging Details: 20KGS/pails OR 200KGS/drums
Delivery Time: 5-15 days
Payment Terms: Western Union,T/T, L/C
Supply Ability: 12000 T per year
  • Detail Information
  • Product Description

Detail Information

Appearance: Translucent Hardness: 40 Shore A
Tensile Strength: 5.5 Mpa Elongation: 350%
Tear Strength: 30 KN/m Sample: Available
Ratio: 1:1 Tensile Set: 0.8%
Line Shrinkage: 2.1% Usage: 12 Months
Advantage: More Than 15 Years Experience Resilience: 70%
High Light:

custom silicone rubber

,

rtv silicone mould making rubber

Product Description

Factory wholesale hot selling molding silicone rubber parts for mold making with high transparent and FDA food grade





Advantages
1) Environmental protection/non-toxicity, FDA food grade silicone
2) High viscosity, not easy to penetrate

3) High wear resistance, brightness and wash-ability
4) Can set color (multi-layer color), do not fall off when set color, pattern is not single, can form different patterns, silicone printing trend leads the fashion field.
5) Various effects can be printed (bright or matte, round or right-angled effect, thick or thin, large or small patterns), strong stereoscopic effect, soft handle and strong adhesion.
6) Can firmly adhere to the surface of textiles, non-woven fabrics, dermis, imitation leather and other materials.
7) The effect of wool pressing is good.
8) Solve the problem of firmness of leather and waterproof fabric effectively
9) Printing gloves, clothing, paper, sports goods, etc., cold and heat resistance, skid resistance, silk-printed patterns have a strong three-dimensional feel, and feel soft, and complement each other with textiles or leather goods; silk-printed patterns also have excellent peeling strength, wear resistance, brightness; it also has water-proof, skid-proof, breathable, high resistance, low temperature. And good leveling.
10) Super elasticity, in the normal range of elasticity of the fabric does not fall off, cracking. Printing patterns do not decolor, do not re-dye (not sublimate).
11) Good air permeability, outside water, oil and other pollutants can not enter, while the inside of the hot air can be permeable.



40 Shore A Hardness LSR Liquid Silicone Rubber For Mold Making With High Transparent Food Grade 040 Shore A Hardness LSR Liquid Silicone Rubber For Mold Making With High Transparent Food Grade 140 Shore A Hardness LSR Liquid Silicone Rubber For Mold Making With High Transparent Food Grade 240 Shore A Hardness LSR Liquid Silicone Rubber For Mold Making With High Transparent Food Grade 340 Shore A Hardness LSR Liquid Silicone Rubber For Mold Making With High Transparent Food Grade 440 Shore A Hardness LSR Liquid Silicone Rubber For Mold Making With High Transparent Food Grade 540 Shore A Hardness LSR Liquid Silicone Rubber For Mold Making With High Transparent Food Grade 640 Shore A Hardness LSR Liquid Silicone Rubber For Mold Making With High Transparent Food Grade 740 Shore A Hardness LSR Liquid Silicone Rubber For Mold Making With High Transparent Food Grade 840 Shore A Hardness LSR Liquid Silicone Rubber For Mold Making With High Transparent Food Grade 9

Features:
Liquid Silicone Rubber - RH6250 - It has the characteristics of good transparency, low linear shrinkage, stable size, room temperature operation for a long time, short curing time.



Application:Make mould for the materials forming.



Test items Appearance Viscosity Hardness Density Resilience Tensile Strength(MPa) Elongation at break Tear strength(KN/m) Tensile set(%) Line shrinkage
Testing standard Visual inspection DIN53019 GB/T531.1 GB/T1533 533-2008 GB/T1681 1681-2009 GB/T528 GB/T528 GB/T529 GB/T528 CGB-T14235.4
Unit / Pa.s ShoreA g/cm³ % MPa % KN/m % %
RH6250-10A/B Transparent 500 10 1.07 20 1.5 750 5 4.3 2.5
RH6250-15A/B Transparent 600 15 1.08 45 3.5 850 9 3.4 2.7
RH6250-18A/B Transparent 600 18 1.08 50 5 800 12 3.4 2.5
RH6250-20A/B Transparent 800 21 1.09 50 6.5 800 15 2.6 2.4
RH6250-30A/B Transparent 1000 30 1.1 55 7 700 15 2.6 2.4
RH6250-40A/B Transparent 1200 40 1.11 55 7.5 550 25 2.6 2.5
RH6250-50A/B Transparent 1200 50 1.12 65 9 550 30 1.7 2.6
RH6250-60A/B Transparent 1500 60 1.12 60 9.5 500 35 1.7 2.6
RH6250-70A/B Transparent 2000 65 1.13 55 9.5 400 30 0.8 2.5
RH6250-71A/B Transparent 2500 70 1.13 55 9 350 25 0.8 2.5



Packing Specification
· A:B, 20KG/bucket ot 200KG/bucket



Remarks:

· Vulcanization conditions: A/B is evenly mixed, 140mm*120mm*2mm mold 175°C*5min compression molding;

· Typical data are average data and actual values may vary. Typical data shall not be used as product specifications.

. The actual curing conditions can be prolonged or shortened accordingly to the thickness and size of the mold



Precautions
· Contacting compounds containing N, P, S, Sn, and Pb during storage and use may cause poisoning of the platinum catalyst and affect vulcanization.

· Store in a cool dry place out of direct sunlight, use it within 12 months from the day of manufacture.




Why chose Rui He Silicone



1) Exported since 2006

2) 15 years rtv2 silicone factory

3) Return and exchange are accepted while quality problems occurred

4) Exports to 138 countries

5) 15 years a trustworthy company

6) 12 experts of R&D, QC staffs

7) 15.000 square meter factory

8) Free training of silicone technique

9) Free silicone samples
