|Place of Origin:||GuangZhou, China|
|Brand Name:||RUI - HE|
|Certification:||RoHS, FDA, MSDS, SGS, REACH, PAHS, ISO9001:2016, etc.|
|Model Number:||RH6150 - 40|
Payment & Shipping Terms:
|Minimum Order Quantity:||20KG or 200KG|
|Packaging Details:||20 kg pails or 200 kg drums|
|Delivery Time:||5 - 15 days|
|Payment Terms:||Western Union, L/C, T/T, Paypal|
|Supply Ability:||1000 tons per day|
|Color:||Customized||Shelf Life:||12 Months|
|Port:||Shenzhen / Guangzhou||Technical Support:||YES|
|Mixing Ratio:||1 : 1||Advance:||High Rebound|
custom silicone rubber,
high temp silicone mold rubber
Two-Component RTV Silicone Mould Making Rubber RH6150 - 40® High Rebound for Buttons with FDA
Rui-He RH6150 - 40 ® is a kind of two-component liquid silicone rubber for injection molding processes, consisting of part A and part B. It can be used to produce electronics keys supplies with the high rebound and good resistance to yellow. All LSR are platinum cured (vulcanized) materials which are mixed in a 1: 1 ratio by weight.
Key Features and Benefits
|RH6150 - 40®|
|Unit||Part - A||Part - B|
|Shore A Hardness||A||40 ± 2|
|Tensile Strength||MPa||≥ 6.0|
|Tear Strength||KN / m||≥ 18|
|Linear Shrinkage||%||≤ 0.5|
These figures are for reference only, please contact us for details.
The mixing ratio of components A: B = 1: 1.
Vulcanization: 150 °C / 5 min

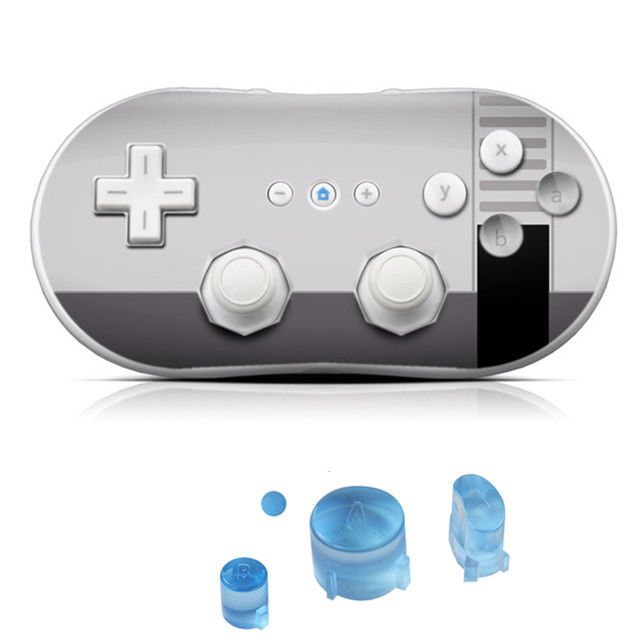

Because of the outstanding properties RH6150 - 40 ® liquid silicone rubber is particularly suitable for keys supplies, such as computer keyboard, sponge.
Rui-He RH6150 - 40 ® Liquid silicone rubber obtained the following test certificate: RoHS, FDA, REACH, PAHS, ISO9001:2016, etc.
Packaging & Storage
Available in 20kg pails or 200kg drums.
Store in a cool, dry place out of direct sunlight, use it within 12 months from the day of manufacture.
This product cannot be contacted with compounds containing N, P, S to avoid affecting the catalytic effect of platinum.
Liquid silicone rubber operations
Firstly process and prepare the model mold or the product to be duplicated, take a certain amount of the silicon rubber, add 2-3% solid curing agent, and mix evenly and they are ready for use. One pair of mold can be solidified and formed in 2-3 hours.
(Note: our company does not recommend you to add silicon oil. If a special soft silicon mold or fine detailed and complex patterns products are required, 5%-10% silicon oil can be added to soften the mold for easy demold.)
If you need to know the prices of our silicone rubbers, please contact us. We do not provide prices on the website because prices fluctuate for many reasons.
