Product Details
Place of Origin: GuangZhou, China
Brand Name: RUI - HE
Certification: RoHS, FDA, MSDS, SGS, REACH, PAHS, ISO9001:2016, etc.
Model Number: RH6250-50YH
Payment & Shipping Terms
Minimum Order Quantity: 20KG or 200KG
Price: Negotiation
Packaging Details: 20 kg pails or 200 kg drums
Delivery Time: 5 - 15days
Payment Terms: Western Union, L/C, T/T, Paypal
Supply Ability: 1000 tons per day
Features: |
Fast Curing,high Transparency |
Shelf Life: |
1 Year 2 Part Silicone |
MOQ: |
20KGS |
Mixing Ratio: |
1:1 |
Color: |
Transparent |
Application: |
Knuckle |
Port: |
Guangzhou / Shenzhen |
Sample: |
Avaliable |
Material: |
100% Silicone Material |
Certificate: |
FAD.MSDS. ROHS.LFGB. ISO 9001:2015 |
Features: |
Fast Curing,high Transparency |
Shelf Life: |
1 Year 2 Part Silicone |
MOQ: |
20KGS |
Mixing Ratio: |
1:1 |
Color: |
Transparent |
Application: |
Knuckle |
Port: |
Guangzhou / Shenzhen |
Sample: |
Avaliable |
Material: |
100% Silicone Material |
Certificate: |
FAD.MSDS. ROHS.LFGB. ISO 9001:2015 |

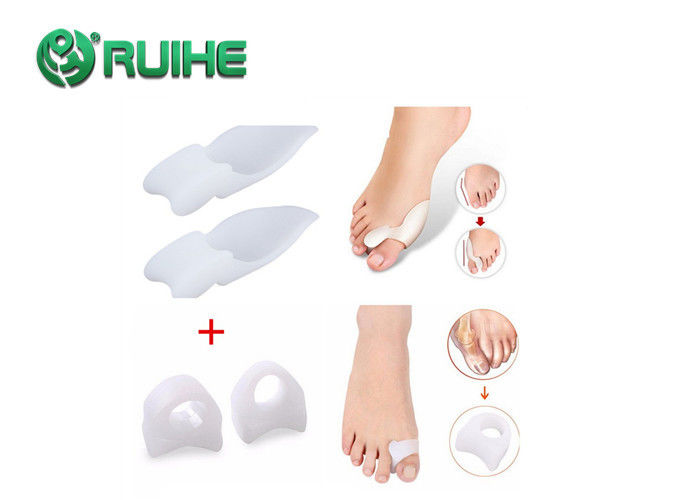

High Resistance To Yellow UpTo Medical Grade Liquid Silicone Rubber For Knuckle
Description
RUI-HE 6250-50YH® is a kind of two-component liquid silicone rubber for injection molding processes, consisted of part A and part B. It can be used to produce medical products with high transparency,high tear resistance fast curing and good resistance to yellow. All LSR are platinum cured (vulcanized) materials which are mixed in a 1 : 1 ratio by weight.
Typical Properties
| 6250-50YH® | |||
| Unit | Part - A | Part - B | |
| Appearance | / | transprarent | transprarent |
| Shore A Hardness | A | 50±3 | |
| Tensile Strength | MPa | ≥8.0 | |
| Elongation | % | ≥550 | |
| Tear Strength | KN/m | ≥25 | |
| Viscosity | mPa.s | 1600000-2200000 | |
| Density | g/cm3 | 1.12±0.02 | |
| Resilience | % | ≥50 | |
| Tear off permanent deformation | % | 1.7 | |
| Compression set | % | ≤35 | |
These figures are for reference only, please contact us for details.
Mixing ratio of components A : B = 1 : 1.
Vulcanization: 150 °C / 5 min
Packaging & Storage
Available in 20kg pails or 200kg drums.
Store in a cool, dry place out of direct sunlight, use it within 12 months from the day of manufacture.
Notice
This product cannot be contacted with compounds containing N, P, S to avoid affecting the catalytic effect of platinum.
Key Features and Benefits
Applications
Because of the outstanding properties 6250-50YH® liquid silicone rubber is particularly suitable for medical products,such as negative pressure ball,catheter connector, Cartilage, contraceptive ring, venous catheter, gastric tube, cardiac pacemaker, cardiac mitral valve, double lumen, infusion tube, tendon, blood pressure machine, breast augmentation breast, knuckle, peritoneal dialysis tube, etc.
Certificate
Rui-He 6250-50YH® Liquid silicone rubber obtained the following test certificate: RoHS, FDA.21.177, REACH, PAHS, ISO9001:2016, etc.
Tips
Q: How many kgs of silicone I need to make a mold, like 1m*1m?
A: First, you change the "m" to "cm". Then the V(volume)=100cm(length)*100cm(width)*1.5cm(height or thickness) =15000cm3
→ the density of the liquid silicone is 1.1g/cm3→ the quantity= 15000cm3* 1.1g/cm3=16500g(16.5kg)
Q: How can I know the thickness of the silicone mold?
A: For the pouring way, if you do not have a plaster have a base to keep its shape (like square), then we usually suggest that 2-3cm is enough. If yes, then 1-1.5 cm is enough.
Q: Why is there not enough 25kgs silicone in the drum?
A: V=m/p. because the different of the silicone viscosity, so there will be a little difference. When the viscosity is lower, there will be 26kgs or more. In contrast, there will be 24kgs or little.
Q: Why should I choose RUIHE Silicone?
A: We can offer you the sample, sample test, technical support, engineers' instruction, new products development, new market expansion, factory visiting reception, latest silicone news in China, related products purchasing assistance, 15-year experience in producing silicone rubber.
Q: Which shipping method can we choose?
A: You can choose your usual logistics company and logistics method.
Q: How long can I expect to get the sample?
A: 5-7 working days.
If you need to know the prices of our silicone rubbers, please contact us. We do not provide prices in website because prices fluctuate for many reasons.
